BEFORE YOU BEGIN:
- This product is specifically designed for installation on the outside of the vehicle.
- Required Items include an installation squeegee (included), masking tape, glass cleaner, dry paper towels, measuring tape or ruler.
- Do not apply any vinyl graphics in direct sunlight. Make sure it is between 60 degrees and 80 degrees F
- Do not store unapplied graphics in direct sunlight - damage may occur.
- All dirt, grease and wax must be removed from the car surface before the decal is applied. This includes wax from mechanical car washes, rain-x, compound, etc. Failure to take this step may result in the decal not sticking to the vehicle surface.

STEP 3 - PREPARE THE SURFACE
LARGER VIEW	The most important step during decal installation is making sure the installation area is clean and dry. Make sure there is NO WAX, RAIN-X, COMPOUND, lint, dust, or other residue on the surface.
Remove all wax, compound residue, car wash protectant, etc with PREP-SOL, laquer thinners, brake cleaner, 409, Fantastic, etc. After cleaning the surface, go over the surface with regular glass cleaner. Wipe it dry.
All waxes, oils, and polish must be removed from the vehicle surface to insure that the decal will stick properly Make sure the area is at least 60° F and no hotter than 80° F.

STEP 4 - PLACE THE DECAL
Temporarily place the decal in the desired location with two small pieces of masking tape (one on each upper corner of the decal) holding the decal to the vehicle surface. With a tape measure or yard stick, align the decal with the window or body section.	LARGER VIEW
Once the decal is aligned to the vehicle, stand back and look at the decal. it should be level with respect to the ground. Adjust as necessary.

STEP 5 - SECURE THE DECAL
LARGER VIEW	Apply a long piece of masking tape along the top of the decal with approx half of the tape on the decal and half on the vehicle surface. This will make a large hinged 'flap'. Then carefully trim around the edge of the decal with a scissor or razor blade. Be sure to allow at least 1 inch extra all around.
The hinged flap will make installation much easier.

STEP 6- START REMOVING BACKING PAPER
Raising the large hinged 'flap', and begin to peel the wax paper backing off the decal (exposing the sticky side of the decal). Be sure to only expose half of the decal. DO NOT ALLOW THE STICKY PART OF THE DECAL TO TOUCH THE VEHICLE SURFACE.	LARGER VIEW
Peeling the backing paper only half way down will allow you to keep the decal away from the vehicle surface until necessary.

STEP 7 - BEGIN DECAL APPLICATION
LARGER VIEW	With the wax paper backing peeled half way downward, begin to apply the sticky side of the decal to the vehicle surface with the Free application tool enclosed. Besure to use even strokes horizontally across the decal. ONLY APPLY THE FIRST HALF OF THE DECAL.
The application squeegee should have a sharp even edge. The tool should be angled 45 degrees away from the center of the decal. This will keep bubbles from forming between the decal and the vehicle surface.

STEP 8 - CONTINUE INSTALLATION
Continue smoothing out the decal with long hoizontal strokes, starting at the top and working towards the bottom. Continue to remove the backing paper as needed.	LARGER VIEW
Only remove the wax paper backing as needed. The sticky side of the decal should be covered until installation. This will keep it from getting dirty and sticking to the vehicle surface prematurely.

STEP 9 - FINAL TRIMMING

LARGER VIEW LARGER VIEW LARGER VIEW

Once the entire sticky side of the decal is applied to the vehicle, go over the decal with the application squeegee, with increasingly harder strokes. Using a sharp razor blade, carefully cut around the edge of the window trim, just on the glass.

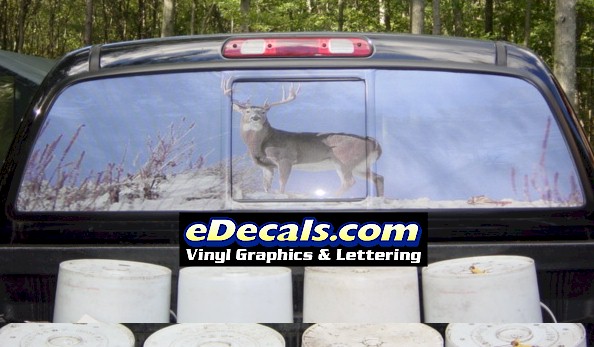

For sliding rear windows as shown in the example, cut vertically along the slider trim, slicing apart the window sections. Fold over the decal and use the squeegee to work the decal into the recesses.

STEP 10 - BEGIN TAPE REMOVAL
LARGER VIEW	Once the entire sticky side of the decal is applied to the vehicle, go over the decal with the application squeegee, with increasingly harder strokes. Then begin peeling the transfer tape covering the decal.
The transfer tape covering is made of paper with a sticky backing. This must be removed after the decal is installed. The vehicle surface must be proper temperature for this tape to be removed easily.

STEP 11 - FINISH INSTALLATION
LARGER VIEW	Finish removing the transfer tape covering, peeling from one side to the other. Any small bubbles can be removed using a small razor blade. Take the razor blade and poke a small hole in the vinyl at the source of teh bubble. Then with the squeegee, push the remaining air out of the bubble.
Be sure to follow the care & maintenance instructions below.
